RPC-0.80 - Ready for Measurements up to 145 GHz



0.80 mm - Designed where Conventional Interfaces such as 1.00 mm or 1.85 mm reach their Physical Limits

The new Rosenberger RPC‑0.80 series delivers reliable, repeatable high‑frequency performance up to 145β€―GHz – meeting the needs of advanced semiconductor and test & measurement applications. - ideal for chip testing, radar & satellite systems, terahertz applications, and precision microwave/D‑band measurements.



Next-Level Connectivity – RPC-0.80 – 145 GHz

Where others stop, the Rosenberger RPC‑0.80β€―mm is just getting started.
Engineered for frequencies up to 145β€―GHz, this high-precision connector delivers low-loss performance and exceptional signal integrity in the sub‑THz range.

Thanks to its compact design and high mechanical and electrical precision, the Rosenberger RPC-0.80 connector offers not only excellent repeatability and impedance matching, but also a reliable foundation for the development and characterization of cutting-edge RF components and systems. The precisely manufactured mechanical interface ensures repeatable performance, even under frequent mating and unmating cycles.

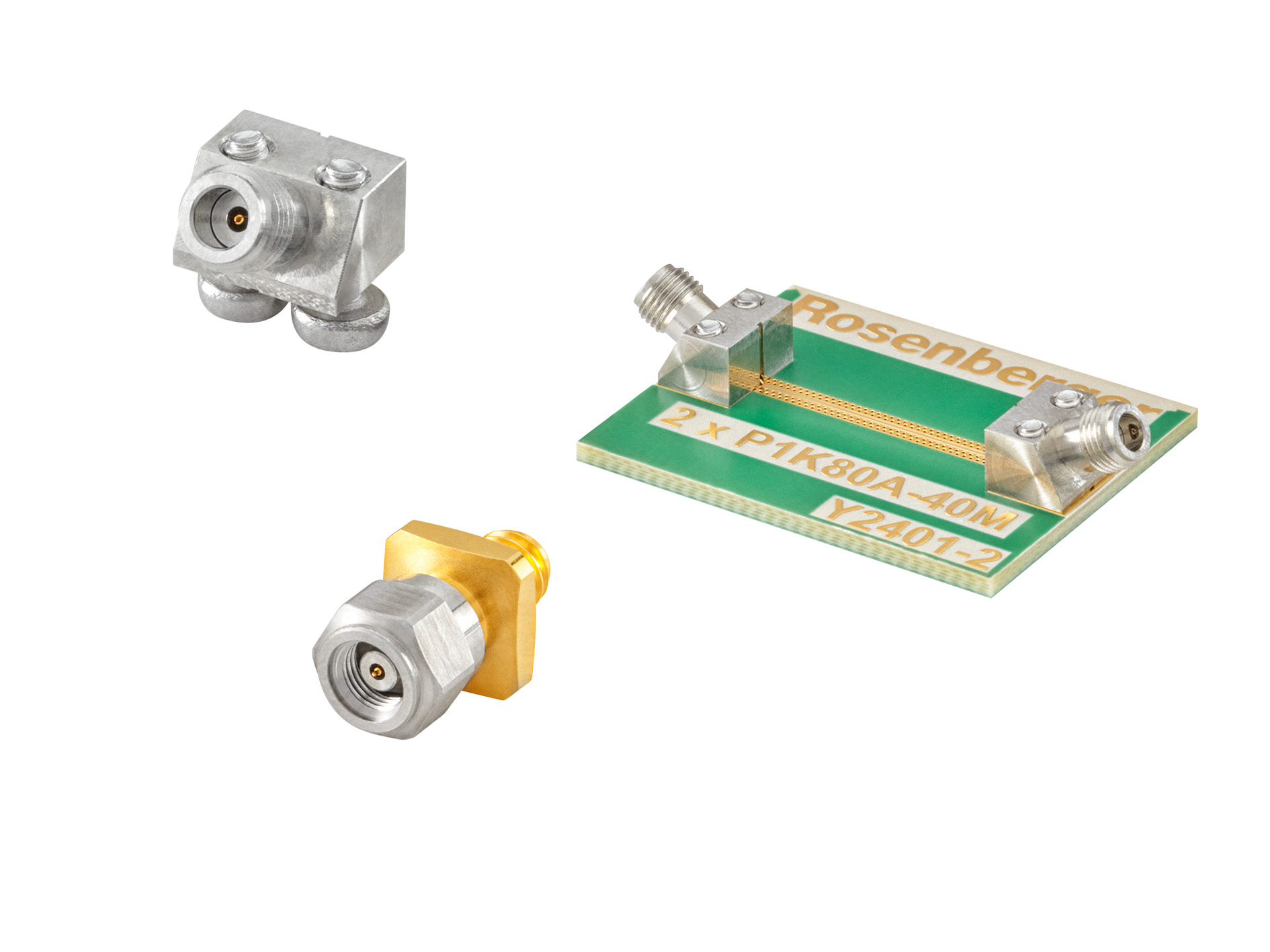

Portfolio

Fulfill the needs of advanced semiconductor and test & measurement applications

  • PCB connectors
  • Test PCBs
  • Cable connectors
  • Cable assemblies and custom tailored solutions on request
  • Adaptors (in‑series, inter‑series)
  • Waveguide adapters
  • Tools


Features

The precisely manufactured mechanical interface ensures repeatable performance, even under frequent mating and unmating cycles

  • Interface according to IEC 61169-64, IEEE Std 287
  • Frequency range up to 145 GHz
  • Air-dielectric coaxial structure
  • Minimal return loss
  • Impedance 50 Ξ©
  • Mating cycles ≀3000
  • Threaded coupling mechanism
  • Extrem small dimensions
  • Stable signal integrity
