Mini-SMP
Rosenberger Mini-SMP connectors are extremely small coaxial connectors, approximately 70% of standard SMP size. They are designed for applications up to 65 GHz and mainly for high-speed signal transmission (typically 10 or 40 Gbps). Plugs are available as smooth bore-versions – for plug-in technology and backplane applications – and as vibration resistant full detent types, for the highest mechanical loads such as those found in aerospace engineering.
Mini-SMP subminiature connectors are well-proven, offering a high level of flexibility in alignment tolerances and for simplifying the whole production process. Rosenberger Mini-SMP coaxial connectors are mateable with common Mini-SMP connectors as specified by MIL-STD-348A, Fig. 328, as well as GPPO™ (Gilbert Engineering Co., Inc.) and SSMP™ (Carlisle Interconnect Technologies) series.
The PCB connectors are supplied in tape and reel packaging for automatic assembly to boards and also in blisters.

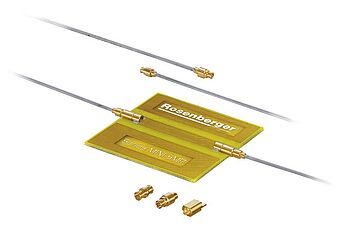

Product Portfolio
- Cable connectors
- Panel connectors

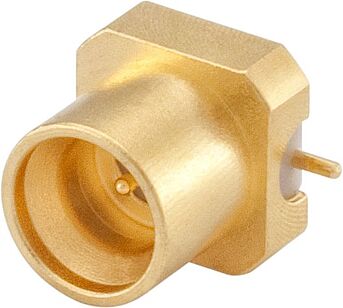

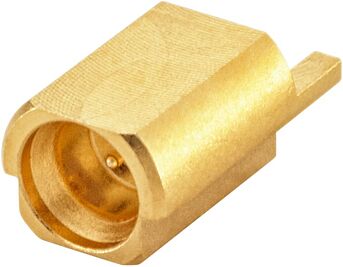

- PCB connectors (SMD smooth bore and full detent)

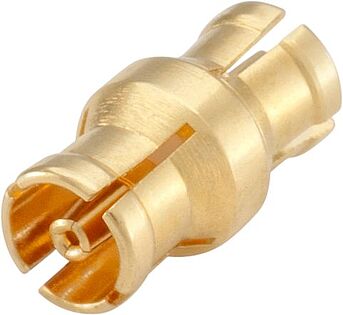

- Adaptors & bullets in different lengths
- Cable assemblies
- Calibration kits
- Measurement equipment (open, short, load, terminations)
- Tools
Features
- Interface according to MIL-STD 348A, fig. 328
- Frequency range DC up to 65 GHz
- Return loss: ≥ 26 dB @ DC to 26.5 GHz; ≥ 17 dB @ 26.5 GHz to 50 GHz; ≥ 14 dB @ 50 GHz to 65 GHz
- Impedance 50 Ω
- Mating cycles full detent ≥ 100 smooth bore ≥ 500
- Minimum board-to-board distance 7.94 mm
- Axial misalignment ± 0.1 mm
- Radial misalignment 4°
- Snap-on locking mechanism
Benefits
- Interface dimensions and materials guarantee compatibility of all connectors with MIL-STD-348A, fig. 328 interfaces
- Extremely small dimensions
- For high-speed signal transmission typically 10 or 40 Gbps
- High packing density due to minimum pitch and board-to-board distances
- Push/Snap-on locking for fast and easy disconnection
- Radial and axial misalignment using bullets in different lengths
- Different detent types: smooth bore and full detent
- Automatic and cost-effective assembly with tape and reel packaging options
Applications
- Ideally suited for high-speed interconnect applications
- Highest performance for use in telecommunication, test & measurement, industrial, defence or aerospace applications
