HySpeedVision (HYV)
The All-in-One Connectivity Solution for Machine Vision in Automation and Robotics
Modern machine vision systems in automation and robotics demand the highest performance in image processing. Camera systems must transfer large volumes of data in real time, ensure stable signal quality, and operate reliably around the clock – even under harsh industrial conditions.

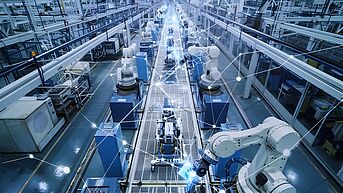

Rising Demands in Machine Vision
High-resolution cameras generate enormous data rates that cannot be transmitted seamlessly without a reliable connectivity solution. At the same time, the demand is growing for space-saving solutions that combine data and power transmission, minimize cabling complexity, and provide maximum flexibility in system design.

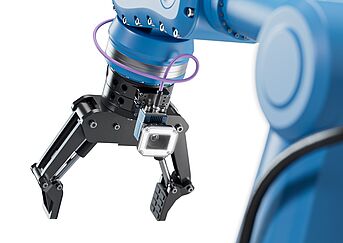

HySpeedVision - Engineered for Machine Vision
With HySpeedVision (HYV), Rosenberger offers an all-in-one connectivity technology designed specifically for machine vision:
- High-speed data transmission in real time – for high-resolution camera signals
- Multi-protocol compatibility – ensuring maximum flexibility in system design
- Single-cable technology for data & power – significantly reducing cabling effort
Rugged and EMV-safe – built for reliable continuous operation in industrial environments
HySpeedVision combines superior signal quality with a space-saving design, ensuring smooth and efficient data flow between camera and computer.
Ensuring Reliable Data Transmission
The stable signal transmission of HYV ensures dependable performance even at high data rates. This guarantees secure real-time image processing — for maximum data security from the camera to the computer.
Data connectors for reliable image processing — the basis for efficient automation and robotics.

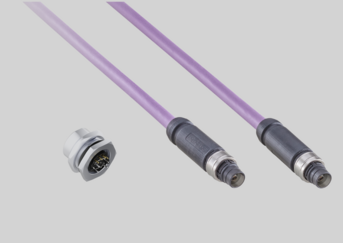

Product Portfolio
- PCB connectors

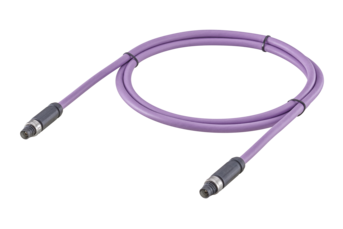

- Cable assemblies
Smart Cable Solutions for Every Application
Rosenberger delivers robust RF cable solutions for industrial camera integration – from robotics and drag chain systems to flexible cabling and fixed installations.
Our proven cable types offer:
- Reliable signal quality with low attenuation
- High torsion and cycle resistance
- Compact, space-saving design
Engineered for dynamic movements and tight bending radii, Rosenberger cables ensure powerful, reliable, and future-ready data transmission in demanding machine vision environments.
Features
- 4 Power Pins with 1,5 A at 24 V
- 2 Signal Pins
- Frequency range DC up to 3.5 GHz
- Data rates up to 12 Gbps over distances of up to 12 m (GMSL3)
- IP 67 rating
- Shielded
- Locking mechanism push-pull
- Temperature range -20 °C - +70 °C
- EN 61076-2-101 M12 Standard
Benefits
- High transmission performance with GMSL3
- Single-cable technology for data and power
- Engineered for dynamic applications
- Compact integration with minimal installation space
- Industrial-grade reliability
Protocols
- GMSL1-3
- FDP-Link
- APIX®
- ASA Motion Link
- USB
- Further protocols on request
Applications
- Robotic
- Automation
- Quality Control
- Safety
- Medical Technology
Development Support for Modern Machine Vision Systems
When developing modern machine vision systems, various factors are critical to bringing reliable and powerful products to market in an environment of high data rates and increasing miniaturization.
Rosenberger supports developers not only with innovative connectors for industrial applications but also with comprehensive expertise:
- Design-in consulting for optimal integration
- PCB layout calculations for maximum precision
- Powerful simulation tools for increased efficiency and validation
In addition to proven data connectors, Rosenberger offers simulations that ensure stable device communication and help implement cost-efficient and reliable systems. The result: a powerful peripheral infrastructure for the industrial image processing of tomorrow.
